| Brand Name : | BYD |
| Model Number : | Qin Plus |
| Price : | Negotiate |
| Payment Terms : | T/T |
| Supply Ability : | 100 / month |
| Delivery Time : | 5-7 days |

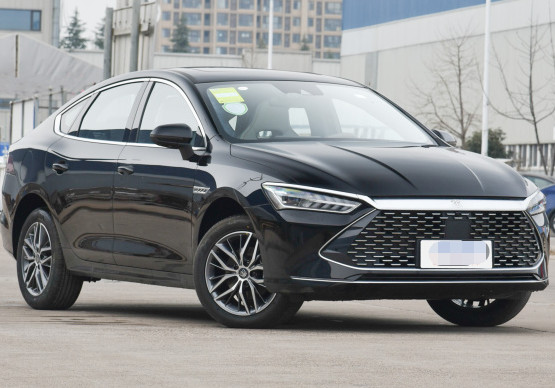

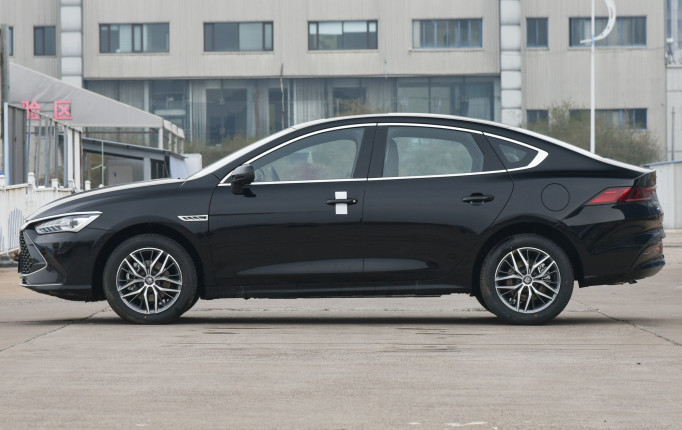

BYD Qin Plus 2023 Champion Version DM-i 120km Leading Model plug-in hybrid compact car
Qin PLUS DM-i is a compact model under the BYD Dynasty series. In terms of power, Qin PLUS DM-i 2023 Champion Edition’s DM-i super hybrid technology is based on the Xiaoyun-plug-in hybrid dedicated 1.5L high-efficiency engine, EHS electric hybrid system and DM-i super hybrid dedicated blade battery. The maximum power is 110 horsepower and the peak torque is 135 Nm. In terms of performance and battery life, the new car can accelerate from 0 to 100 kilometers in 7.3 seconds, consume 3.8L of electricity per 100 kilometers, and have a comprehensive battery life of 1245km.
In terms of appearance, Qin PLUS DM-i 2023 Champion Edition adopts the "Dragon Face" design concept. The headlights on both sides are three-dimensional, sharp and stylish, and the overall is more fashionable and atmospheric. In addition, the raised lines on both sides of the cabin cover of this car are infused with a strong sporty look. The taillights of the new car adopt a through-type design and add an English logo on the top. In addition, the inverted trapezoidal license plate frame area also appropriately adds some layering.
| Qin Plus 2023 Champion Version DM-i 120km Leading Model | Qin Plus 2023 Champion Version DM-i 120km Beyond Model | Qin Plus 2023 Champion Version DM-i 120km Excellent Model | |
| Basic configuration | |||
| Car class | compact car | compact car | compact car |
| Energy Type | plug-in hybrid | plug-in hybrid | plug-in hybrid |
| Market issue time | March.2023 | March.2023 | March.2023 |
| Max power(kw) | 81 | 81 | 81 |
| Engine Max torch(Nm) | 145 | 145 | 145 |
| Electro motor total torch(N.m) | 325 | 325 | 325 |
| Engine | 1.5L 110HP L4 | 1.5L 110HP L4 | 1.5L 110HP L4 |
| Electro motor(ps) | 197 | 197 | 197 |
| gearbox | E-CVT | E-CVT | E-CVT |
| L*W*H(mm) | 4765*1837*1495 | 4765*1837*1495 | 4765*1837*1495 |
| Body structure | 4 Door 5 Seats sedan | 4 Door 5 Seats sedan | 4 Door 5 Seats sedan |
| Maximum speed (km/h) | 185 | 185 | 185 |
| Official 0-100km/h acceleration (s) | 7.3 | 7.3 | 7.3 |
| NEDC comprehensive fuel consumption (L/100KM) | - | - | - |
| WLTC comprehensive fuel consumption (L/100KM) | 1.58 | 1.58 | 1.58 |
| Car Body | |||
| Longth(mm) | 4765 | 4765 | 4765 |
| width(mm) | 1837 | 1837 | 1837 |
| height(mm) | 1495 | 1495 | 1495 |
| wheel base(mm) | 2718 | 2718 | 2718 |
| front wheel base(mm) | 1580 | 1580 | 1580 |
| rear wheel base(mm) | 1590 | 1590 | 1590 |
| full load minimum space from floor(mm) | |||
| approach angle (°) | 13 | 13 | 13 |
| departure angle (°) | 14 | 14 | 14 |
| Minimum turning radius (m) | 5.5 | 5.5 | 5.5 |
| Car Structure | sedan | sedan | sedan |
| door opening method | Flat open | Flat open | Flat open |
| Number of doors (PC) | 4 | 4 | 4 |
| Number of seats (PC) | 5 | 5 | 5 |
| Fuel tank volume (L) | 48 | 48 | 48 |
| Trunk volume (L) | - | - | - |
| Curb weight (KG) | 1620 | 1620 | 1620 |
| Maximum full load mass (KG) | 1995 | 1995 | 1995 |
| Engine | |||
| engine model | BYD472QA | BYD472QA | BYD472QA |
| Displacement (mL) | 1498 | 1498 | 1498 |
| Displacement (L) | 1.5 | 1.5 | 1.5 |
| Intake form | Natural suction | Natural suction | Natural suction |
| engine layout | transverse | transverse | transverse |
| Cylinder arrangement | L | L | L |
| Number of cylinders (pcs) | 4 | 4 | 4 |
| Valves per cylinder (PC) | 4 | 4 | 4 |
| Air distribution structure | DOHC | DOHC | DOHC |
| Maximum horsepower (Ps) | 110 | 110 | 110 |
| Maximum power (KW) | 81 | 81 | 81 |
| Maximum power speed (rpm) | 6500-6600 | 5200-5600 | 5200 |
| Maximum torque (NM) | 135 | 135 | 135 |
| Maximum torque speed (rpm) | |||
| Maximum Net Power (kW) | |||
| fuel form | gasoline | gasoline | Hybrid |
| fuel label | 92 | 92 | 92 |
| Oil supply method | Mixed injection | Mixed injection | Mixed injection |
| cylinder head material | Aluminium alloy | Aluminium alloy | Aluminium alloy |
| Cylinder material | Aluminium alloy | Aluminium alloy | Aluminium alloy |
| Environmental Standards | China VI | China VI | China VI |
| Electro Motor | |||
| Type of motor | Permanent magnet synchronous | Permanent magnet synchronous | Permanent magnet synchronous |
| Total motor power (kw) | 145 | 53 | |
| Total torque of motor (N.m) | 197 | 163 | |
| Maximum power of front motor (kW) | 325 | 53 | |
| Maximum torque of front motor (N.m) | 145 | 163 | |
| System integrated power (kW) | - | - | - |
| drive motor qty | 1 | 1 | 1 |
| motors layout | L | L | L |
| Battery Type | Lithium iron phosphate battery | Lithium iron phosphate battery | Lithium iron phosphate battery |
| Transmission | |||
| Number of gears | E-CVT | E-CVT | E-CVT |
| Transmission type | Electronic continuously Variable Transmission (ECVT) | Electronic continuously Variable Transmission (ECVT) | Electronic continuously Variable Transmission (ECVT) |
| short name | E-CVT | E-CVT | E-CVT |
| Chassis steering | |||
| drive mode | Front wheel drive | Front wheel drive | Front wheel drive |
| Four-wheel drive | - | - | - |
| center differential structure | - | - | - |
| Front suspension type | Macpherson independent suspension | Macpherson independent suspension | Macpherson independent suspension |
| rear suspension type | Type E multi-link independent suspension | Type E multi-link independent suspension | Type E multi-link independent suspension |
| boost type | Electric assist | Electric assist | Electric assist |
| Body structure | load bearing | load bearing | load bearing |
| wheel braking | |||
| Front brake type | ventilated disc | ventilated disc | ventilated disc |
| rear brake type | disc | disc | disc |
| Parking brake type | Electronic parking | Electronic parking | Electronic parking |
| Front tire specification | 215/55/R17 | 215/55/R17 | 215/55/R17 |
| rear tire specification | 215/55/R17 | 215/55/R17 | 215/55/R17 |
| Spare tire specification | Non-full size | Non-full size | Non-full size |
| Active/passive safety equipment | |||
| Main/passenger airbags | Driver● /Vice driver ● | Driver● /Vice driver ● | Driver● /Vice driver ● |
| Front/rear side airbags | Front● /Rea● | Front● /Rea● | Front● /Rea● |
| Front/rear head airbags (curtain) | Front● /Rear ● | Front● /Rear ● | |
| Knee airbag | - | - | - |
| Passenger seat cushion air bag | - | - | - |
| pedestrain auto protect | ● | ● | ● |
| Tire pressure monitoring function | Tire pressure show | Tire pressure show | Tire pressure show |
| Seat belt reminder | front row | front row | front row |
| ISOFIX child seat interface | ● | ● | ● |
| ABS anti-lock | ● | ● | ● |
| Brake force distribution (EBD/CBC) | ● | ● | ● |
| Brake Assist (EBA/BAS/BA) | ● | ● | ● |
| Traction Control(ASR/TCS/TRC) | ● | ● | ● |
| Car steadiness control (ESC/ESP/DSC) | ● | ● | ● |
| Parallel Auxiliary | - | - | |
| Lane Departure Warning System | ● | ● | |
| Lane Keeping Assist | ● | ● | |
| Lane centered keeping | ● | ● | |
| Active Braking/Active Safety System | ● | ● | |
| Fatigue driving alarm | ● | ● | |
| Forward Collision Warning | ● | ● | |
| Assist/Control configuration | |||
| Front/rear parking radar | Front● /Rear ● | ||
| driving assistance video | Reverse image● | ●Reverse image ●side blind spot image | |
| Reversing side warning system | - | - | - |
| cruise system | ●Full speed adaptive cruise | ●Full speed adaptive cruise | ●Full speed adaptive cruise |
| Driving mode switching | ●sports ●Economic | ●sports ●Economic | ●sports ●Economic |
| automatic parking | - | - | - |
| Brake energy recycle | ● | ● | ● |
| automatic hold | - | - | - |
| hill assist | ● | ● | ● |
| steep descent | - | - | - |
| Changable suspension | ● | ● | ● |
| air suspension | - | - | - |
| Assisted driving level | ●L2 Honda SENSING | ●L2 Honda SENSING | ●L2 Honda SENSING |
| External / Anti-Theft Configuration | |||
| sunroof type | ●Electrical sunroof | ●Openable panorama sunroof | |
| Sport Appearance Kit | - | - | ● |
| Rim material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Electrical sunction door | - | - | - |
| Side sliding door | |||
| Electric trunk | - | - | - |
| Sense tailgate | - | - | - |
| Electric trunk position memory | - | - | - |
| roof rack | - | - | - |
| Engine electronic immobilizer | ● | ● | ● |
| interior central lock | ● | ● | ● |
| key type | Remote Key | Remote Key | Remote Key |
| keyless start system | ● | ● | ● |
| Keyless entry function | - | front row | front row |
| Low speed warning | ● | ● | ● |
| Internal configuration | |||
| Steering wheel material | ●Plastic | ●Genuine leather | ●Genuine leather |
| Steering wheel position adjustment | ● Manual up and down + front and rear adjustment | ● Manual up and down + front and rear adjustment | ● Manual up and down + front and rear adjustment |
| Shift form | Mechanical gear shift | Mechanical gear shift | Mechanical gear shift |
| Multifunction steering wheel | ● | ● | ● |
| steering wheel shift | - | - | |
| Steering wheel heating | - | - | |
| Trip computer display screen | ●Colorful | ●Colorful | ●Colorful |
| Full LCD Dashboard | - | - | - |
| LCD meter size | ●7'' | ●7'' | ●7'' |
| HUD | - | - | - |
| built in recorder | - | - | - |
| auto reduce noise | ● | ● | ● |
| wireless charger | - | ●Front | ●Front |
| Seat configuration | |||
| seat material | ●fabric | ●Artificial Leather | ●Artificial Leather |
| Sports style seat | - | - | - |
| main seat adjustment | ●front and rear adjustment ●Backrest adjustment ●Height adjustment 2-way) | ●front and rear adjustment ●Backrest adjustment ●Height adjustment (4-way)●Lumber support(4-way) | ●front and rear adjustment ●Backrest adjustment ●Height adjustment (4-way)●Lumber support(4-way) |
| Assistant seat adjustment | ● front and rear adjustment●Backrest adjustment | ● front and rear adjustment●Backrest adjustment | ● front and rear adjustment●Backrest adjustment |
| Main/passenger seat electric adjustment | - | Driver●/Vice driver● | |
| front seat function | - | - | ●heating |
| E seats memory function | - | - | Driver● |
| Rear boss button | - | - | - |
| Second row seat adjustment | - | - | - |
| 2nd row seats E-adjust | - | - | - |
| 2nd row seats function | - | - | ●heating |
| 2nd row seats independent seats | - | - | - |
| Seats lay out | - | - | - |
| rear seats put down form | down as a whole | down as a whole | down as a whole |
| Front/rear center armrest | Front● /Rear - | Front● /Rear ● | Front● /Rear ● |
| rear cup holder | - | - | - |
| Multimedia configuration | |||
| Central control color screen | ●LCD screen | ●Touch LCD screen | ●Touch LCD screen |
| Central control screen size | ●7'' | ●10.25'' | ●10.25'' |
| GPS | ● | ● | |
| Bluetooth phone | ● | ● | |
| Phone connect/mapping | |||
| voice recognition system | ● | ● | |
| car internet | ● | ● | |
| 4G/5G OTA WIFI | 4G | 4G | |
| Rear seats media control | ● | ||
| Multimedia/charging interface | ●USB | ●USB | ●USB |
| Number of USB Type-C ports | - | ●Front 1/Rear 2 | ●Front 1/Rear 2 |
| 220V/230V power output | - | - | - |
| Speaker Brand | - | - | - |
| Speaker Qty | ●4 | ●8 | ●8 |
| phone APP remote control | ● | ● | |
| Lighting configuration | |||
| low beam light source | ●LED | ●LED | ●LED |
| high beam light source | ●Halogen | ●LED | ●LED |
| Lighting Features | - | - | - |
| LED daytime running lights | ● | ● | ● |
| Auto adaptive high low light | ● | ● | ● |
| automatic headlights | ● | ● | ● |
| Turning Assist light | - | - | - |
| Turning headlight | - | - | - |
| Car front fog light | - | ●LED | ●LED |
| Headlight height adjustable | ● | ● | ● |
| headlight cleaning device | ● | ● | ● |
| Headlights delay turn off | - | - | - |
| touch reading light | - | - | - |
| In-car ambient lighting | - | - | |
| Glass/Rearview mirror | |||
| Front/rear power windows | Front● /Rear ● | Front● /Rear ● | Front● /Rear ● |
| One window lift function | ● Front row | ● All Car | ● All Car |
| Window anti-pinch function | ● | ● | ● |
| Multi layer sound proof window | ● Front row | ● Front row | ● Front row |
| Side mirror function | ●Electric adjustment ●heating●Electric fold | ●Electric adjustment ●heating●Electric fold●Auto fold on lock | ●Electric adjustment ●heating ●Electric fold ●Auto fold on lock ●Automatic folding when locking the car ●Automatic down to earth when reversing |
| Inside rearview mirror function | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare |
| Rear sunshade curtain | - | - | - |
| Rear privacy window | - | ||
| interior vanity mirror | Driver● /Vice driver+light● | Driver+light● /Vice driver+light● | Driver+light● /Vice driver+light● |
| rear wiper | - | - | - |
| Sensor wiper function | rain sensor | rain sensor | rain sensor |
| Air conditioner/refrigerator | |||
| Air conditioner temperature control method | ●AUTO AC | ●AUTO AC | ●AUTO AC |
| Rear independent air conditioner | - | - | - |
| rear air outlet | ● | ● | ● |
| temperature zone control | ● | ● | ● |
| car air purifier | - | - | - |
| PM2.5 filter | ● | ● | ● |
| Anion generator | - | - | ● |
|
|
