| Brand Name : | JAC |
| Model Number : | Kangling G6 156HP 4X2 4.15M Dump Truck |
| Price : | to be negotiated |
| Payment Terms : | T/T |
| Supply Ability : | 100 per month |
| Delivery Time : | 7-15 |

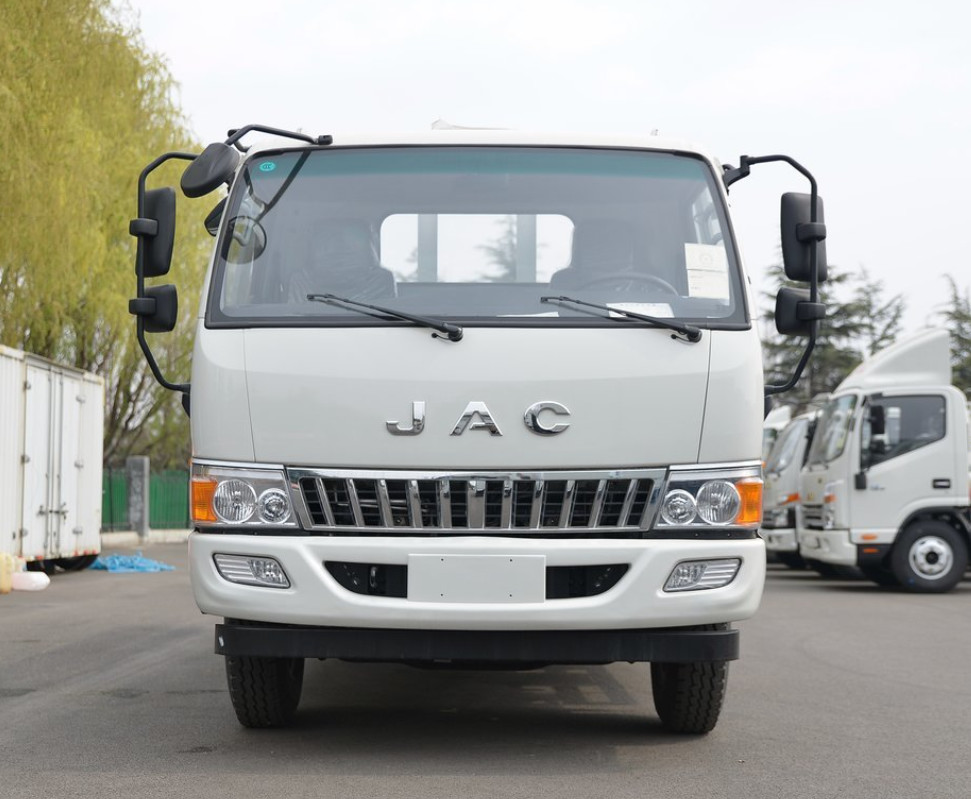

JAC Kangling G6 156HP 4X2 4.15M Single Row Dump Truck
| JAC Kangling G6 156HP 4X2 4.15M Dump Truck | |
| Basic configuration | |
| Model | HFC3046P91K2C9V |
| Type | Light truck |
| drive form | 4X2 |
| wheelbase(mm) | 3400mm |
| engine | Yunnei Power D30TCIE1 |
| gearbox | 5AT |
| L*W*H(mm) | 5995*2285*2400 |
| vehicle weight(KG) | 2600 |
| Rated load(KG) | 1495 |
| Total mass(KG) | 4290 |
| Maximum torque speed | 1500-2700rpm |
| Number of cylinders | 4 |
| Fuel form | diesel |
| Displacement | 2.977L |
| Maximum output power | 115KW |
| Max horsepower | 156HP |
| Max torque | 400N.M |
| front wheel base(mm) | 1695 |
| rear wheel base(mm) | 1705 |
| approach angle (°) | 22 |
| departure angle (°) | 18 |
| Place of origin | Anhui Hefei City |
| Carriage configuration | |
| Carriage form | dump type |
| Carriage length(mm) | 4150 |
| Carriage width(mm) | 2110 |
| Carriage height(mm) | 550 |
|
|
