| Brand Name : | JAC |
| Model Number : | JYD5070TQZPJH6 |
| Price : | To be Negotiated |
| Payment Terms : | T/T |
| Supply Ability : | 100 per month |
| Delivery Time : | 5-7 days |

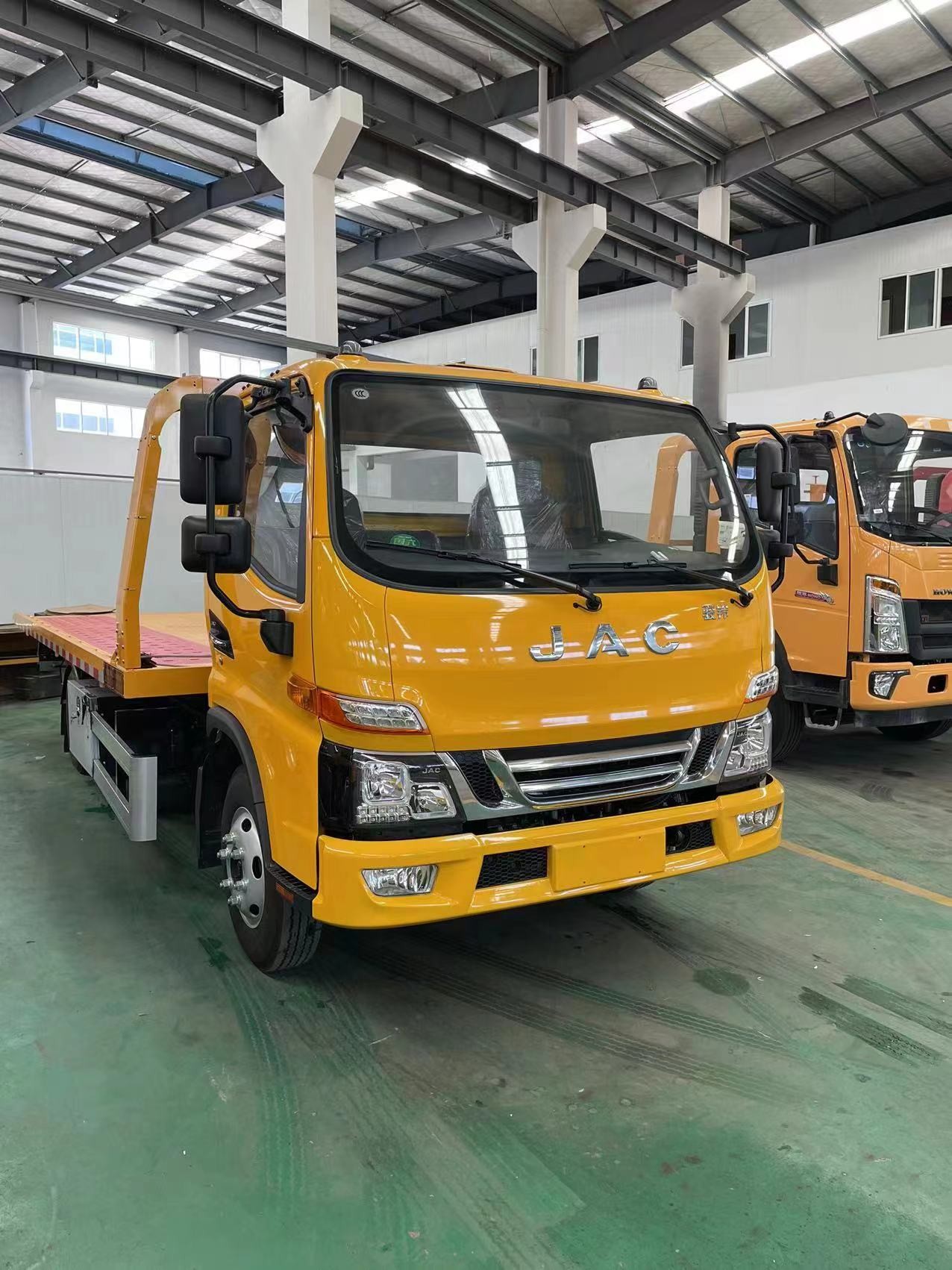

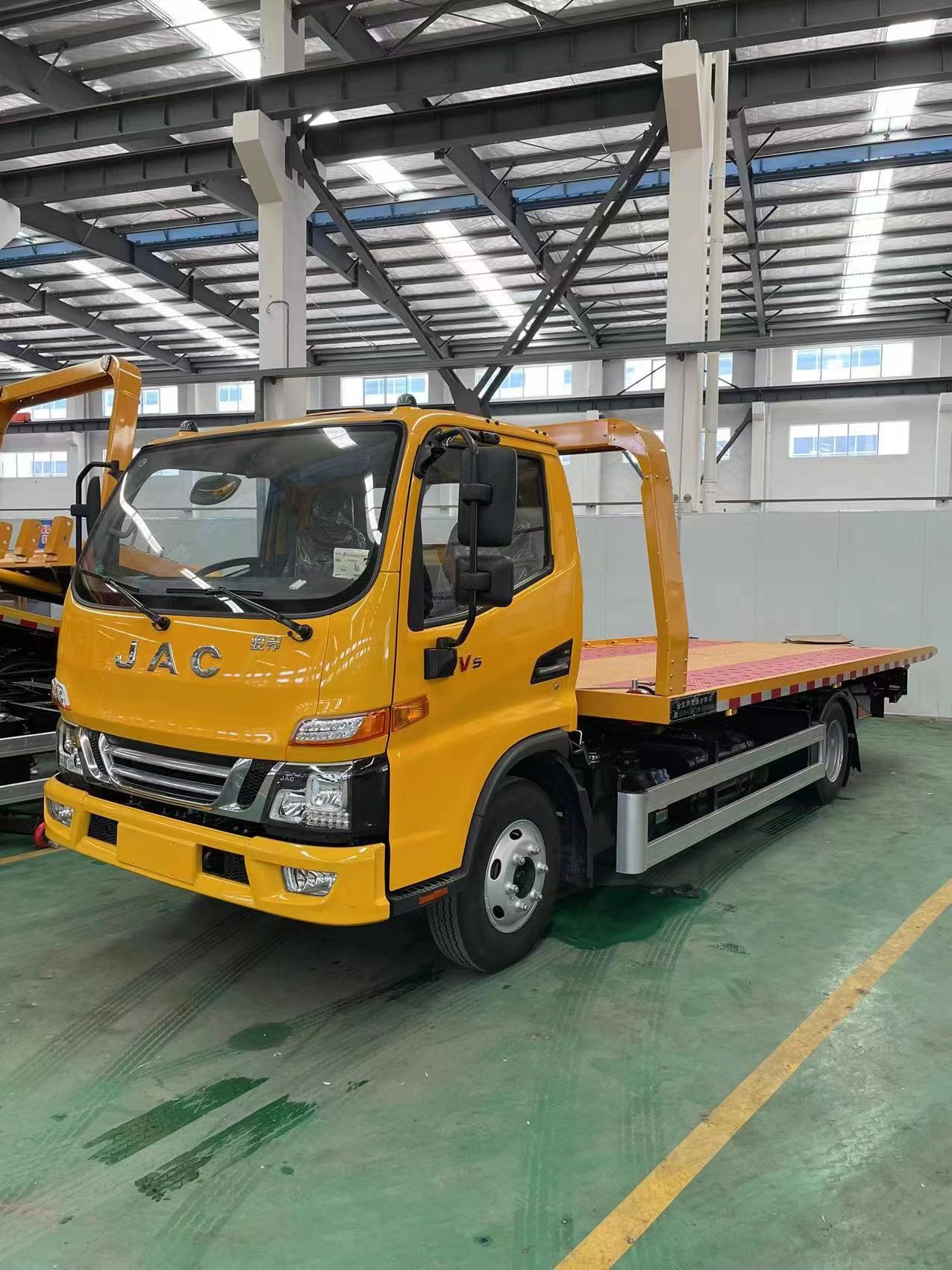

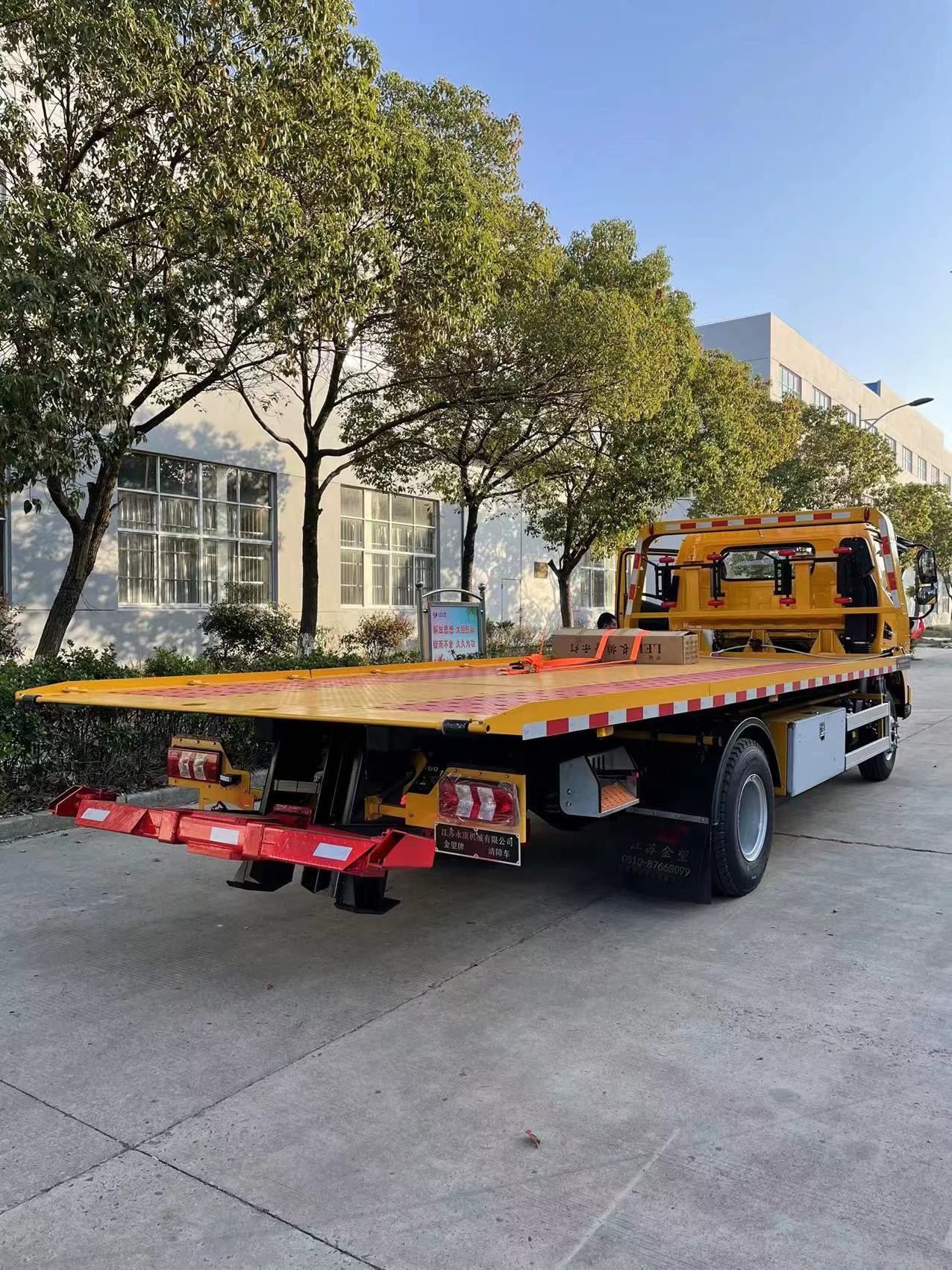

JAC Flat Wrecker JYD5070TQZPJH6
JYD5070TQZPJH6 flat wrecker is suitable for safe cleaning of urban roads, suburban roads, expressways, airports, and bridge and culvert roads. The working objects are all kinds of cars, small vans and other special vehicles within the allowable range of the technical parameters of the car.
| 版本 | JAC JYD5070TQZPJH6 Flat Wrecker (China VI) | |
| Basic configuration | ||
| Model | JYD5070TQZPJH6 | |
| Vehicle Dimensions(mm) | 7415*2400,2300*2280 | |
| Manufacture | Anhui JAC limited Co., | |
| Drive form | 4X2 | |
| wheelbase(mm) | 3845 | |
| Curb weight (KG) | 4900 | |
| Full load mass(KG) | 7355 | |
| Fuel from | diesel fuel | |
| Lift structure | ||
| Rated lifting capacity(KG) | 7355 | |
| The maximum lifting weight with the support arm fully extended(KG) | 1500 | |
| Effective length of support arm (mm) | 1500 | |
| Arm telescopic travel(mm) | 1350 | |
|
|
